Slant Aluminum Honeycomb
Slant aluminum honeycomb ( 30° 45° 60° ) The most commonly used type of vent is based on aluminum honeycomb mounted in an extruded aluminum frame. The honeycomb agent has a very high open area and therefore allows good air flow with minimal pressure drop. In order to achieve the best shielding...

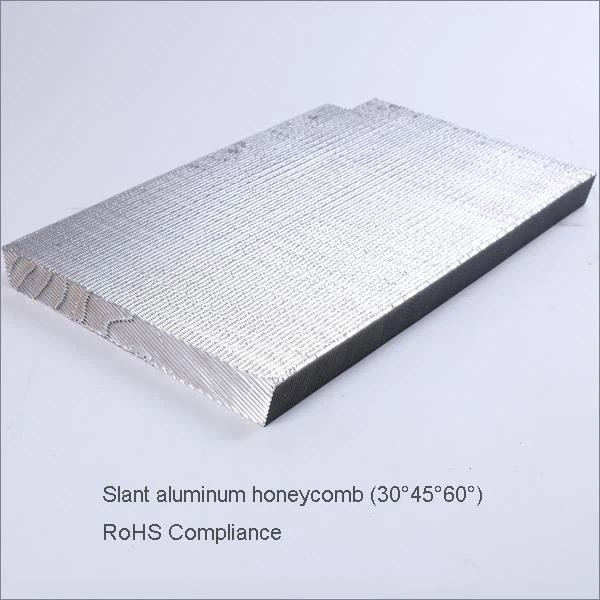

Slant aluminum honeycomb

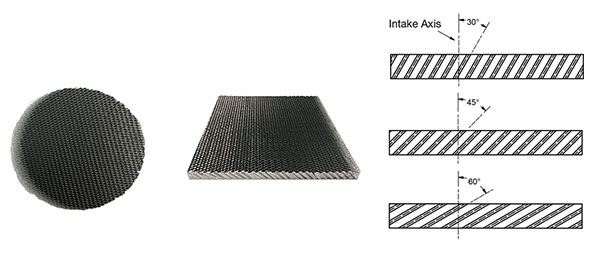

( 30° 45° 60°)
The most commonly used type of vent is based on aluminum honeycomb mounted in an extruded aluminum frame. The honeycomb agent has a very high open area and therefore allows good air flow with minimal pressure drop. In order to achieve the best shielding performance two layers of honeycomb are used orientated at 90°to one another, although this is not always necessary on some less demanding applications. The exterior facing honeycomb layer can be angled (usually 45°)so as to direct airflow in a particular direction or to deflect rain.
Genearation introduction of aluminum honeycomb
Huarui aluminum honeycomb core is adhesively-bonded of the aluminum foil, which produces one of the highest strength/weight and the highest surface-to –volume ratio of any structural material. Our aluminum honeycomb is made from 3003H18 and 5052H18 aluminum alloy foil.
Aluminum honeycomb core slices are cut from aluminum honeycomb blocks and its thickness is available from 1.5mm to 500mm. Thickness tolerance +/- 0.2mm
Huarui can provide special process per requirements, say grooving, punching holes,notch,cut to size.
Aluminum honeycomb specifications:
1.Material type: A3003H18 / 5052H18
2.Cell side length (mm): 0.5, 0.6, 0.7, 0.8, 0.9, 1.0, 1.5, 1.83, 2, 2.5, 3, 4, 5, 6, 7.5, 10, 12, 15 mm (cell size=cell side length/1.732)；Cell Size (inch): 1/30”, 1/25”, 1/20”, 1/18”, 1/16”, 1/15”, 1/10”, 1/8”, 1/6”, 1/5”, ¼”, 1/3”, 3/8”, ½”, ¾”, 1”
3.Foil thickness: 0.025-0.08 mm, 0.1mm
4.Supplied in: Blocks, unexpanded slices or expanded sheets (Perforated or Non Perforated)
5.Height/Sheet Thickness: 1.5mm to 500mm
6.Max Sheet Sizes: 1700mm (L) x 8000mm (W)
Max expanded size(mm)
Aluminum honeycomb features:
1.Lightweight & Strong
2.Excellent thermal and electric conductivity
3.Good sound insulation performance
6.Moisture and corrosion resistant
7.High compression & shear strength
Aluminum honeycomb applications:
1.Aircraft panels and Lightweight Train Panels/Truck Panels
2.Marine Panels (Commercial vessels and naval vessel bulkheads)
3.And Railcar panels (Doors/Floors and Energy Absorbers/Bumpers)
4.Architectural/Building structural panels (Exterior architectural curtain wall panels)
5.Honeycomb table of Industrial equipment (Sacrificial Laser beds and Tables for laser cutting application)
6.Skis and snowboards
7.Flow straightness for air or fluids/ Air, water, fluid, and light directionalization
8.Heat exchanging/ heating, ventilation, air conditioning equipment and devices
9.RFI/EMC Shielded Vents (Electronic shielding enclosures)
10.Light collimation/ lighting/Illumination Separator
11.Honeycomb Energy Absorbers/ Energy absorption protective structures
12.Laminar Air Flow units/Air Ventilation and purification
13.Sandwich Panels/Honeycomb Composite Panels, Wall ceiling and partition panels
14.Clean Room Panels
18.Honeycomb Grid for Photography Application
Huarui Honeycomb is well-known as one of the largest manufacturers and suppliers of slant aluminum honeycomb in China. We have a professional factory working effectively. Welcome to buy high quality and durable slant aluminum honeycomb at competitive with us and we can also offer the quotation consultation.
