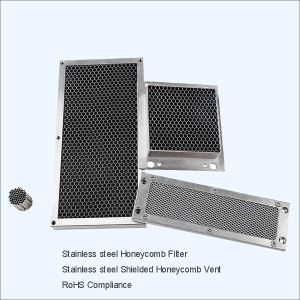

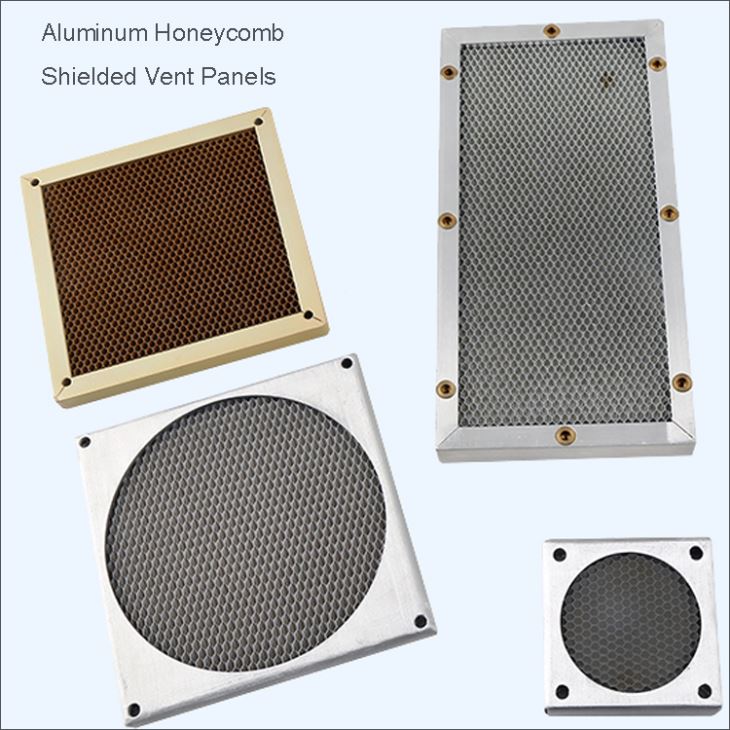

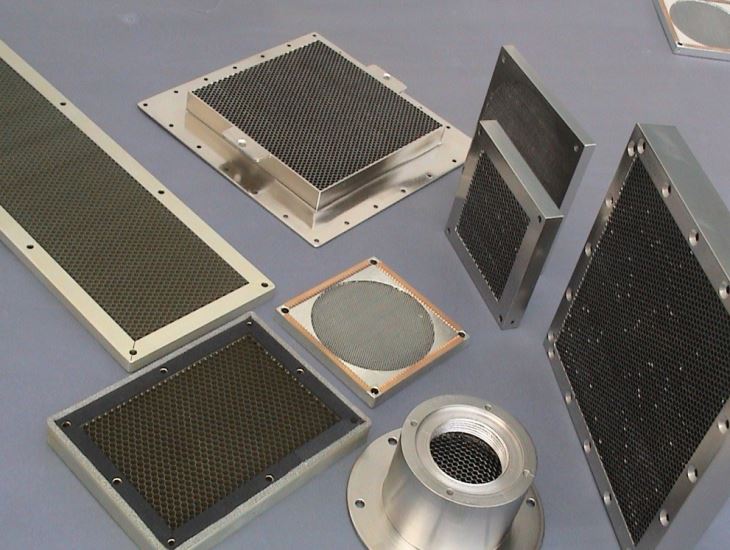

What is EMI Shielding Vent Panel?
An EMI shielding vent panel is a specially designed panel used on the housing of electronic equipment that allows air to circulate to cool the inside of the equipment while blocking the ingress and egress of electromagnetic interference (EMI). Such panels are typically made of conductive materials and have a specific pattern of vents to minimize EMI leakage while maintaining air circulation.
Advantages of EMI Shielding Vent Panel
EMI/RFI shielding
EMI shielding ventilation panels can effectively prevent electromagnetic interference (EMI) and radio frequency interference (RFI) from entering and exiting, protecting the electronic components inside the device from external interference. These panels are essential for equipment that needs to comply with strict electromagnetic compatibility (EMC) standards.
Good ventilation performance
The vented panel design allows air circulation to help dissipate heat and prevent the device from overheating. Proper ventilation hole design can maximize air circulation while maintaining shielding effectiveness.
Structural strength
Ventilation panels are typically made of metal or other sturdy materials that provide structural strength and protect equipment from physical damage. They can be mounted on the device's casing and serve as the first line of defense against external impacts.
Aesthetics
Ventilation panels can be designed to match the appearance of the equipment, improving the overall aesthetics. Customized appearance and color selection can meet the aesthetic needs of different customers.
Easy to install and maintain
Ventilation panels are usually designed to be easily installed and removed to facilitate assembly and maintenance of the equipment. Some panels are also equipped with quick mounting systems such as snap-on mounting, further simplifying the installation process.
Flexibility
Ventilation panels can be customized to the specific needs of the equipment, including size, shape, vent size and arrangement, etc. This flexibility allows ventilation panels to be adapted to a variety of different types of equipment and applications.
Cost-effectiveness
By choosing the right materials and design, cost efficiencies can be achieved while maintaining high performance. Mass production can reduce unit costs, making these panels more economical and practical in electronic device manufacturing.
Environmental adaptability
Some advanced EMI shielding ventilation panels are also dustproof and waterproof, which can protect the internal components of the equipment from being affected in harsh environments.
Application of EMI Shielding Vent Panel
EMI Shielding Vent Panels are used in a wide range of applications where electromagnetic interference (EMI) needs to be controlled while maintaining adequate ventilation. Here are some common applications of EMI Shielding Vent Panels:
1. Electronic Equipment Enclosures
EMI Shielding Vent Panels are frequently used in the enclosures of electronic equipment, such as computers, servers, routers, and switches. These panels protect the internal components from external EMI sources while allowing for proper airflow to maintain the operating temperature.
2. Telecommunication Equipment
In the telecommunications industry, EMI Shielding Vent Panels are crucial for protecting sensitive equipment from electromagnetic interference. They are used in radio base stations, satellite communication systems, and microwave transmission equipment, where EMI can disrupt signal integrity.
3. Medical Devices
Medical devices, such as MRI machines, X-ray equipment, and ultrasound systems, require EMI shielding to ensure patient safety and accurate readings. EMI Shielding Vent Panels are used in the housings of these devices to allow for cooling while preventing EMI leakage.
4. Automotive Electronics
In the automotive industry, EMI Shielding Vent Panels are used in the enclosures of electronic control units (ECUs), sensors, and infotainment systems. They help protect the vehicle's electronics from external EMI sources, such as radio frequency interference (RFI) from nearby transmitters.
5. Aerospace and Defense Applications
Aerospace and defense applications require robust EMI shielding to ensure the reliable operation of mission-critical equipment. EMI Shielding Vent Panels are used in aircraft avionics, radar systems, and missile guidance systems to prevent EMI from interfering with their functionality.
6. Industrial Electronics
Industrial electronics, such as programmable logic controllers (PLCs), motor drives, and automation systems, are often housed in metal enclosures with EMI Shielding Vent Panels. These panels protect the electronics from EMI generated by nearby industrial equipment, motors, and power lines.
EMI Shielding Vent Panel Design Features
Cell size
Specifies the width of the individual cells. The honeycomb is hexagonal, and the cell size is the measurement across each cell and the thickness is the measurement of the entire sheet of honeycomb material.
Cell size can have an impact on airflow, but it can also have an impact on shielding effectiveness. As a general trend, the smaller the cell size, the lower the airflow or the greater the pressure drop across the air vent panel.
At the same time, the smaller the cell size, the greater the shielding effectiveness because the smaller cell size limits the amount of electromagnetic energy able to pass through the openings. The key is to find the middle ground, the largest opening to allow enough air-flow to cool the system, but also the smallest cell size to block the undesired frequencies and obtain the required shielding.
Cell thickness
The thickness of the air vent panel also has an impact on both the airflow and the shielding effectiveness. If the cell size were kept the same, the lower the thickness of the vent panel, the greater the allowable airflow.
The decreased airflow is caused by the surface friction of the air flowing through the honeycomb cells. However, reducing the vent thickness will also reduce the attenuation capabilities of the honeycomb. Again, the key is to try and find the middle ground between good air-flow (less pressure drop) and shielding effectiveness.
Honeycomb construction
Aluminum honeycomb is made from thin ribbons of bent aluminum that are adhered together using a non-conductive adhesive. The points at which the ribbons come together are known as nodes and can cause EMI shielding leakage. With single-layer honeycomb vents, there is actual directional EMI shielding. This is known as the polarization principle.
What Other Factors Need to Be Considered When Designing EMI Shielding Vent Panels?
When designing EMI shielding vent panels, there are several key factors that need to be considered to ensure optimal performance and functionality:
1. Shielding Effectiveness (SE)
The primary function of an EMI shielding ventilation panel is to prevent electromagnetic interference. Therefore, the shielding effectiveness of the panel is crucial. SE is measured in decibels (dB) and indicates how well the panel attenuates EMI.
2. Ventilation Requirements
The panel must allow sufficient airflow to cool the internal components of the electronic device while maintaining EMI shielding. The design should consider the size, shape, and placement of vents to optimize airflow without compromising shielding effectiveness.
3. Material Selection
As mentioned earlier, the choice of material significantly impacts EMI shielding and structural integrity. The designer must consider the conductivity, corrosion resistance, weight, cost, and manufacturability of the selected material.
4. Environmental Considerations
The operating environment of the electronic device can influence the design of the EMI shielding vent panel. Factors such as temperature, humidity, dust, and corrosive agents should be considered to ensure the panel's durability and longevity.
5. Mechanical Strength and Durability
The panel must withstand physical impacts, vibrations, and other stresses encountered during normal operation and transportation. The design should incorporate features that enhance mechanical strength and durability.
What Are the Environmental Considerations When Using EMI Shielding Vent Panels?
Material Selection
The materials used in EMI shielding vent panels, such as metals and coatings, can have environmental impacts during their extraction, processing, and disposal. Selecting materials that are recyclable, have a lower environmental footprint, and comply with relevant environmental standards is crucial.
Energy Efficiency
EMI shielding vent panels should be designed to maximize airflow while minimizing energy loss. Poorly designed panels can restrict airflow, leading to increased energy consumption by the cooled equipment. Optimizing the design of the mesh or perforated metal to allow efficient air exchange is essential.
RoHS and REACH Compliance
Manufacturers of EMI shielding vent panels must ensure compliance with the Restriction of Hazardous Substances (RoHS) and Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) regulations. These regulations restrict the use of certain hazardous substances in electronic products, including heavy metals and other potentially harmful materials.
Recyclability and End-of-Life Management
EMI shielding vent panels should be designed for easy disassembly and recycling at the end of their useful life. This helps reduce waste and the environmental impact associated with disposing of electronic components.
Thermal Management
Proper thermal management is essential to prevent overheating of electronic equipment. EMI shielding vent panels must balance EMI shielding effectiveness with the need for sufficient airflow to dissipate heat. Designs that incorporate heat-dissipating materials or features can help improve thermal performance.
Indoor Air Quality
If the EMI shielding vent panels are used in enclosed spaces, they should not emit harmful gases or particles that could degrade indoor air quality. Selecting materials that are low-emitting and have minimal off-gassing is important.
Outdoor Weather Resistance
For outdoor applications, EMI shielding vent panels must be able to withstand exposure to weather elements such as rain, snow, UV radiation, and temperature extremes. Materials and coatings that provide weather resistance and durability should be considered.
Impact on Biodiversity
If the EMI shielding vent panels are installed in areas with sensitive ecosystems, their impact on biodiversity should be assessed. Measures to minimize habitat disruption and protect local wildlife should be implemented.
How Are EMI Shielding Vent Panels Typically Mounted or Installed?
Screw Mounting
EMI shielding vent panels can be screwed directly into place using threaded fasteners. This method provides a secure attachment and is suitable for permanent or long-term installations. Screw mounting ensures good electrical contact between the panel and the enclosure, which is essential for effective EMI shielding.
Welding or Soldering
For metal enclosures, EMI shielding vent panels can be welded or soldered into place. This creates a permanent bond between the panel and the enclosure, providing excellent EMI shielding performance. Welding or soldering is often used in high-security or high-reliability applications where maximum shielding effectiveness is required.
Adhesive Bonding
EMI shielding vent panels can also be attached using specialized adhesives. This method is suitable for non-metallic enclosures or when a more flexible attachment method is desired. Adhesives provide a strong bond while maintaining the integrity of the EMI shielding.
Gasket Mounting
EMI gaskets or conductive tapes can be used to mount vent panels, ensuring good electrical conductivity between the panel and the enclosure. These gaskets are placed between the panel and the enclosure, and then the panel is pressed into place. This method provides a secure and conductive attachment while allowing for some flexibility in the mounting process.
Snap-Fit or Clip-On Mounting
Some EMI shielding vent panels are designed with snap-fit or clip-on features that allow them to be easily attached to the enclosure without the need for screws or adhesives. These mounting methods provide a quick and convenient way to install and remove the panels as needed.
Custom Mounting Solutions
For unique applications or complex enclosures, custom mounting solutions may be required. This could involve custom brackets, frames, or other mounting hardware designed specifically for the EMI shielding vent panel and the enclosure.
