Aluminum Honeycomb Composite Panels

Aluminum honeycomb Composite panels are sandwich-structured composites with honeycomb cores. Aluminum honeycomb composite panels are manufactured by using a variety of different materials, depending on the intended application and required characteristics.The strength of laminated or sandwich panels depends on the size of the panel, facing material used and the number or density of the honeycomb cells within it. The honeycomb structure like an I-Beam,to create high shear strength.And cells can reduce crimping failure risk.

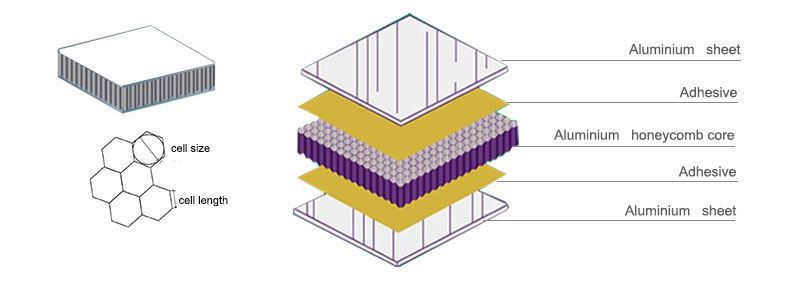

aluminum-honeycomb-structure+2

Aluminum honeycomb Properties

Face sheet	aluminum, fiberglass , carbon fiber, zinc, HPL, galvanized sheet,porcelain, stone
Adhesive	high strength weather resistant thermoplastic adhesive film 1)-40 ℃ to 117 ℃ for general applications 2)-40 ℃ to 200 ℃ for high temperature working conditions
Core	¼", 3/8", ½" aluminum honeycomb
Advantage	easy to install, high strength and lightweight,super flatness,large format,flame retardancy,waterproof
Remark	The strength of laminated or sandwich panels depends on the size of the panel, facing material used and the number or density of the honeycomb cells within it.

Aluinium Honeycomb Composite panel Specification

	Standard size	1250x2500mm, 1500x5600mm
	Standard Thickness	6mm,10mm,15mm,20mm,25mm
	Min Thickness	2mm
	Max Thickness	500mm
	Production capacity	50k ㎡/month
	Certification	ISO9001,IMO MED,Rohs

We provide a wide choice of surface treatment. The surface can be HPL laminate,stone,wood,porcelain,FRP,etc. It also can be wood pattern,stone pattern,anodized,mill finished,PVDF finished,which is to meet customer requirements.

alu-honeycomb-panels

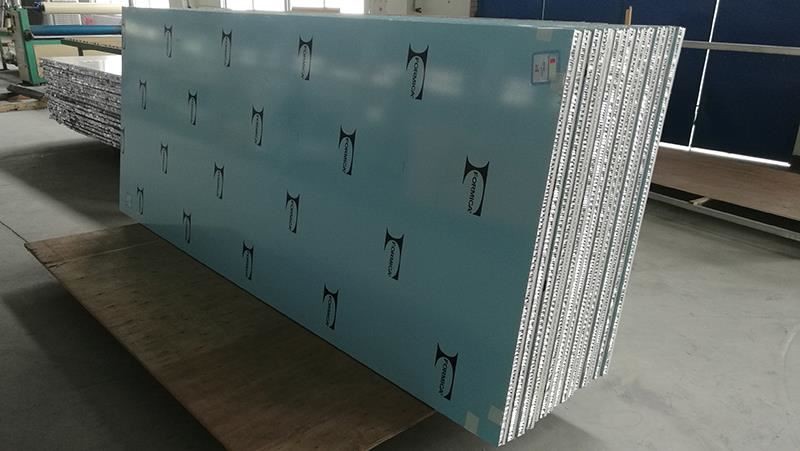

honeycomb composite panels

(HPL-ALU honeycomb panel)

honeycomb-composite-panels+1

(Mill finished-aluminum honeycomb panel)

Application

Honeycomb Panels have such advantages that meet the demands of many applications. The aboved are just a few samples, you can contact us with your requirement,we will provide solution for you.

-Construction industry (external wall cladding; internal wall cladding; ceilling; partition; floor )

-Furnitures(kitchen cabinet;wardrobe; tabletop)

-Transportation( truck body; boat; marine; cruise ship ;bus-stop shelter;Linkway / walkway roof covering)

-Cleaning room

-Aircraft

application of honeycomb panel

FAQ

Q: Are you a factory or trade company?

A: We are a factory in Foshan ,Guangdong,which have an experience of more than 10 years experience of aluminum honeycomb.

Q: Do you provide samples? Is it free or extra?

A: Yes,we could offer sample for free charge but not to pay the cost of freight.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the raw material is in stock.It is 15-30 days if raw material is not in stock.

Q: I am interest in aluminum honeycomb panel,do you provide solution for our project?

A: Of course,we can provide solution for your projects.
