Ventilation panel is one of the main leaks of electromagnetic interference. Previously, the conventional method of opening small holes or adding metal mesh on the chassis plate has not been able to achieve the desired level of shielding.

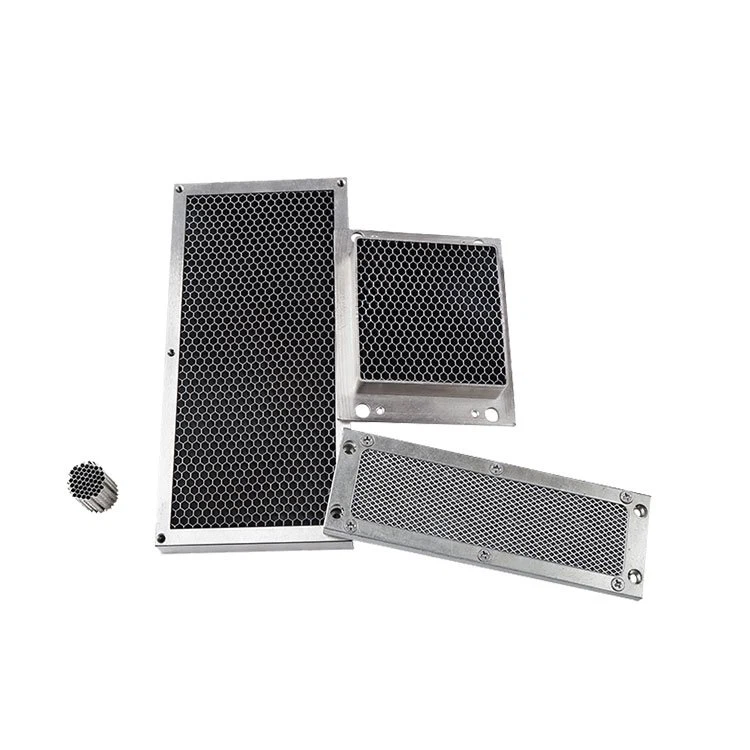

In accordance with national military standards, we have developed a series of honeycomb shielding ventilation panels. Steel honeycomb is a common core material used in shielding ventilation panels. Shielding honeycomb has good electromagnetic shielding interference and can be used for low-cost commercial applications, such as in computer network equipment, Internet systems, high performance data servers, civil communication equipment, etc.
Features:
1. Lower cost
2. Good electromagnetic shielding interference
3. Excellent ventilation performance
4. Surface coating: After conductive oxidation, it can be tinned, nickel plated, galvanized, chrome plated to protect the surface.
5. High temperature resistance and corrosion resistance
6. Light weight and high strength
7. Fire prevention and noise prevention
Specifications:
● Material: carbon steel, 304 stainless steel, 316 stainless steel
● Hole Diameter: 1.6mm, 3.2mm, 6.4mm (can be customized according to drawings)
● Surface Coating: conductive, oxidized, tin-plated, nickel-plated, galvanized, chrome-plated
● Regular Size: 60*60, 120*120,300*300,600*600,1000*1000 ( can be customized according to customer requirements)
● Thickness: 5mm-300mm between any thickness
● Standard Thickness: 6.35mm, 12.7mm, 25.4mm, 30mm, 40mm, 45mm
● Wall Thickness: carbon steel, stainless steel: 0.08mm, 0.13mm
Why Choose Us:
1. With highly efficient laser welding equipment, we are able to undertake a large number of orders and achieve on-time delivery.
2. Rich industry experience, professional production team, and diversified customized services give us obvious advantage over our competitors.
3. ISO9001 Certified
